Name: TruckRoute_line_scag

Display Field: COUNTY

Type: Feature Layer

Geometry Type: esriGeometryPolyline

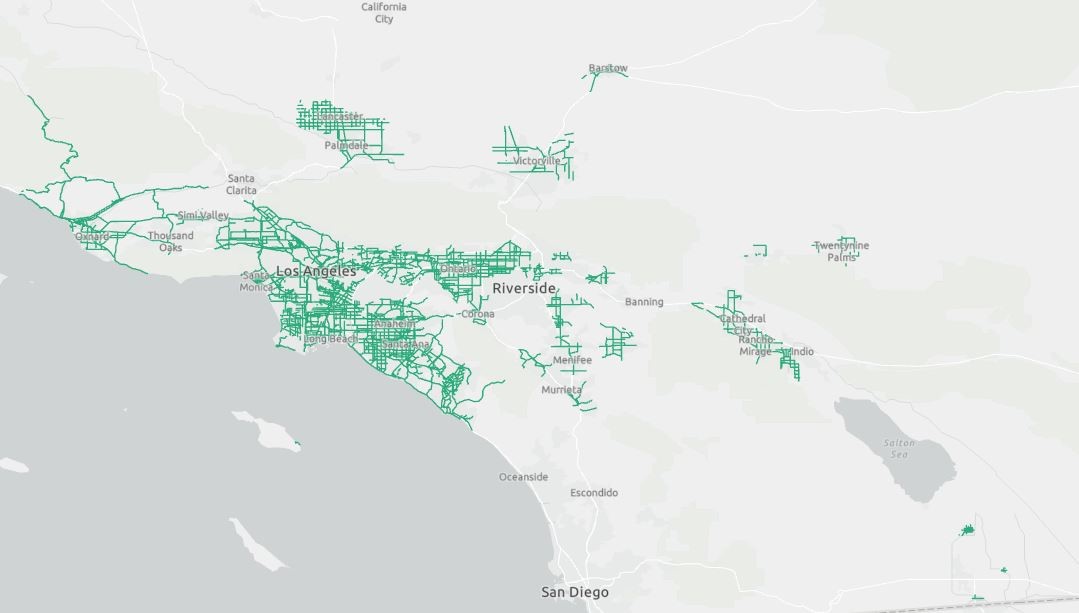

Description: The Southern California Regional Truck Route Shapefile (RTRS) has been compiled using the general plans and municipal codes of the jurisdictions in areas of each of the six County Transportation Commissions (Imperial, Orange, Los Angeles, Riverside, San Bernardino, and Ventura). SCAG has developed standard data fields based on information found in local general plans and municipal codes to identify roadways and roadway segments that are designated as truck routes by the cities. The RTRS includes truck routes on existing local facilities. Jurisdictions may use various operational criteria to define truck routes including number of axles, time of the day, weight-related restrictions, like minimum and maximum weights, gross and net weight limits, are the most commonly used criterion. Existing truck routes are those that are specifically identified as facilities where trucks are generally permitted or restricted during all times, or the majority, of the day. It should be recognized that most jurisdictions permit truck to travel on any roadway segment with clear limitations to their movement (e.g., direct delivery to locations not on a designated route). Each route is at the discretion of its jurisdiction. Confirmation and updates to the RTRS will allow SCAG member cities to understand and develop policy regarding intracity and intercity truck route connections and gaps, and access to relevant land uses within jurisdictional boundaries. (Last updated time: Aug 3, 2023)

Service Item Id: b635c55d30e44d6ca0ae2a7f4a882016

Copyright Text: SCAG

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 272156.4835999999
YMin: 3618329.1963
XMax: 729090.1864
YMax: 3865541.671599999
Spatial Reference: 26911  (26911)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [157, 52, 163, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• COUNTY ( type: esriFieldTypeString, alias: County Name, length: 14 )
• COUNTY_ID ( type: esriFieldTypeString, alias: County FIPS Code, length: 3 )
• CITY ( type: esriFieldTypeString, alias: City Name, length: 22 )
• CITY_ID ( type: esriFieldTypeString, alias: City FIPS Code, length: 5 )
• TR_Type ( type: esriFieldTypeString, alias: Route Type, length: 36 )
• Street_Nam ( type: esriFieldTypeString, alias: Street Name, length: 22 )
• Gross_Wt ( type: esriFieldTypeDouble, alias: Gross Weight Limit )
• Net_Wt ( type: esriFieldTypeDouble, alias: Net Weight Limit )
• Unladen_Wt ( type: esriFieldTypeDouble, alias: Unladen Weight Limit )
• Gross_Empty_Wt ( type: esriFieldTypeDouble, alias: Gross Empty Weight Limit )
• Start_time ( type: esriFieldTypeDate, alias: Start Time, length: 8 )
• End_time ( type: esriFieldTypeDate, alias: End Time, length: 8 )
• Axles ( type: esriFieldTypeInteger, alias: Axles )
• NOTES ( type: esriFieldTypeString, alias: Notes, length: 1 )
• YEAR ( type: esriFieldTypeSmallInteger, alias: Year )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
