Name: FunctionalClassification_line_scag

Display Field: EventID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Functional Classification is used in determining eligibility for Federal funding programs. The Federal Highway Administration (FHWA) identifies Functional Classification as a key item in transportation data. Streets and highways are grouped into classes according to the service they provide. This Functional Classification dataset was sourced from Caltrans California Road System (CRS) web map with the functional classification overlay. The dataset is based on Caltrans Linear Reference System exported on 7/3/2024. The specific dataset that forms this layer was selected for the SCAG region to facilitate the identification of all federal aid eligible roads as well as those that are not eligible, such as local roads. By including this information for each local jurisdiction in the data map books, each local agency can easily and definitively evaluate roadways for eligibility of federal funds to fund operational and capital improvements. This is particularly relevant with Surface Transportation Block Grants and Congestion Mitigation Air Quality Improvement Program funds for which SCAG is responsible for allocating and administering. This information can also support the financial planning and prioritization of roadway improvements.Note: This dataset is intended for planning purposes only, and SCAG shall incur no responsibility or liability as to the completeness, currentness, or accuracy of this information. SCAG assumes no responsibility arising from use of this information by individuals, businesses, or other public entities. The information is provided with no warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Users should consult with each local jurisdiction or Caltrans directly to obtain the official roadway classification information.Functional Roadway ClassificationArterials:InterstateOther Freeways & ExpresswayOther Principal ArterialMinor ArterialTypical CharacteristicsLane Width12 feet11 - 12 feet11 - 12 feet10 feet - 12 feetInside Shoulder Width4 feet - 12 feet0 feet - 6 feet0 feet0 feetOutside Shoulder Width10 feet - 12 feet8 feet - 12 feet8 feet - 12 feet4 feet - 8 feetAADT1 (Rural)12,000 - 34,0004,000 - 18,50022,000 - 8,50021,500 - 6,000AADT1 (Urban)35,000 - 129,00013,000 - 55,00027,000 – 27,00023,000 - 14,000Divided/UndividedDividedUndivided/DividedUndivided/DividedUndividedAccessFully ControlledPartially/Fully ControlledPartially/UncontrolledUncontrolled1- Ranges in this table are derived from 2011 HPMS data.2- For this table, Rural States are defined as those with a maximum of 75 percent of their population in urban areas.Arterials:InterstateOther Freeways & ExpresswayOther Principal ArterialMinor ArterialTypical CharacteristicsLane Width12 feet11 - 12 feet11 - 12 feet10 feet - 12 feetInside Shoulder Width4 feet - 12 feet0 feet - 6 feet0 feet0 feetOutside Shoulder Width10 feet - 12 feet8 feet - 12 feet8 feet - 12 feet4 feet - 8 feetAADT1 (Rural)12,000 - 34,0004,000 - 18,50022,000 - 8,50021,500 - 6,000AADT1 (Urban)35,000 - 129,00013,000 - 55,00027,000 – 27,00023,000 - 14,000Divided/UndividedDividedUndivided/DividedUndivided/DividedUndividedAccessFully ControlledPartially/Fully ControlledPartially/UncontrolledUncontrolled1- Ranges in this table are derived from 2011 HPMS data.2- Information for Urban Major and Minor Collectors is approximate, based on a small number of States reporting.Source: FHWA Functional Classification, Guidelines, 2023 Edition. Highway Functional Classification

Service Item Id: 1d4fa6c7d928437b8accf6dd8556a22c

Copyright Text: California Department of Transportation (Caltrans)

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 272152.42009999976
YMin: 3611245.8757000007
XMax: 763804.8980999999
YMax: 3963621.7764
Spatial Reference: 26911  (26911)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [28, 130, 72, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• OBJECTID_1 ( type: esriFieldTypeInteger, alias: OBJECTID_1 )
• EventID ( type: esriFieldTypeString, alias: EventID, length: 38 )
• RouteID ( type: esriFieldTypeString, alias: RouteID, length: 55 )
• F_System ( type: esriFieldTypeInteger, alias: F_System )
• County_lab ( type: esriFieldTypeString, alias: County_lab, length: 14 )
• Caltrans_D ( type: esriFieldTypeInteger, alias: Caltrans_D )
• Shape_Leng ( type: esriFieldTypeDouble, alias: Shape_Leng )
• YEAR ( type: esriFieldTypeInteger, alias: YEAR )
• Shape_Le_1 ( type: esriFieldTypeDouble, alias: Shape_Le_1 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

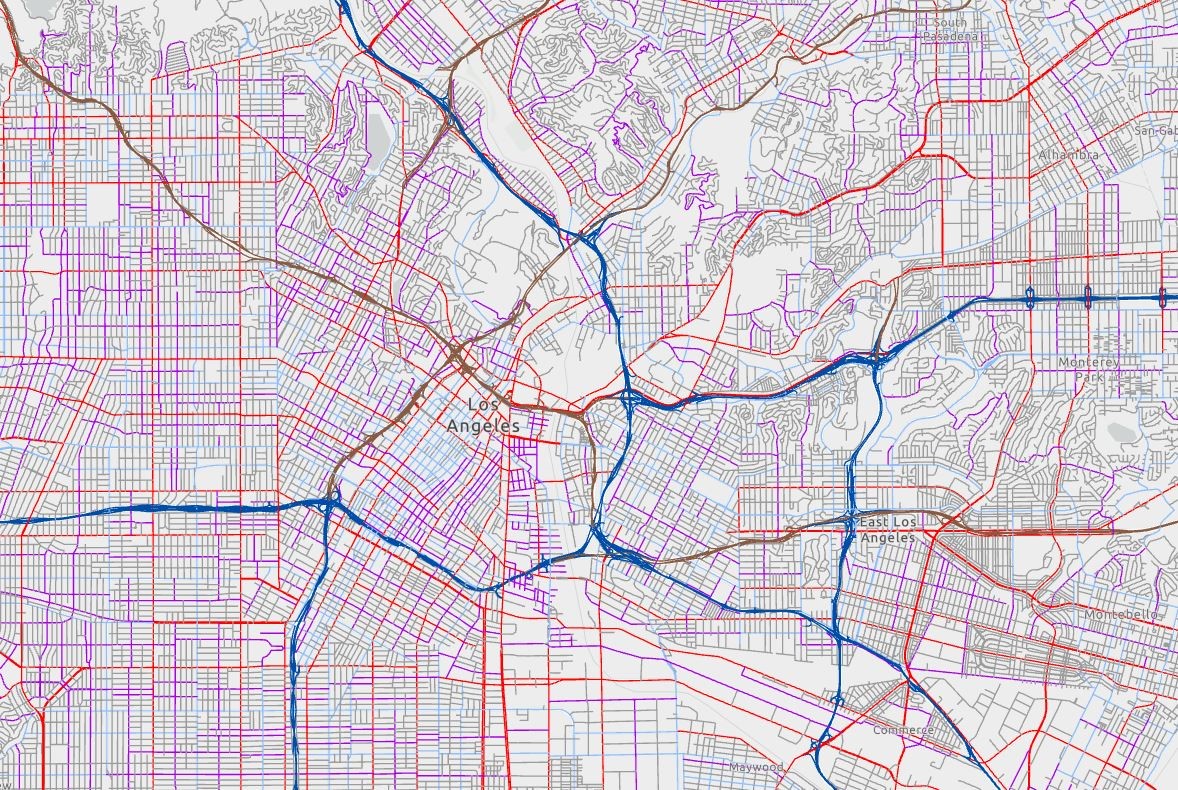

  Iteminfo   Thumbnail   Metadata
